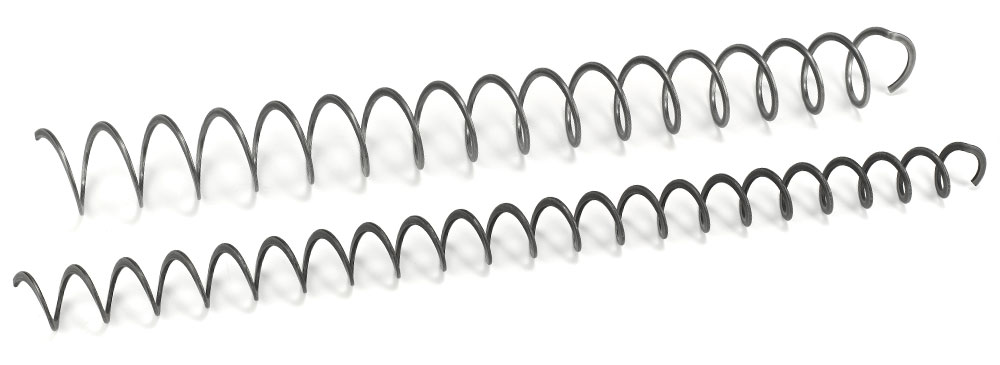

Detail of spring turbulators with hook for heat exchangers - Eurospiral

Spring turbulators with hook

For vertical heat exchangers with automatic cleaning system

Used in vertical heat exchangers, they are made of a piece of flexible or special auger cut to specific lenght with a hook on one end to hang them.
Made of standard, hardened (hardness ~40 HRC) or stainless steel, these spring turbulators with hook for heat exchangers are the ideal solution for use in vertical heat exchangers equipped with an automatic cleaning system where a short pitch is also normally required.

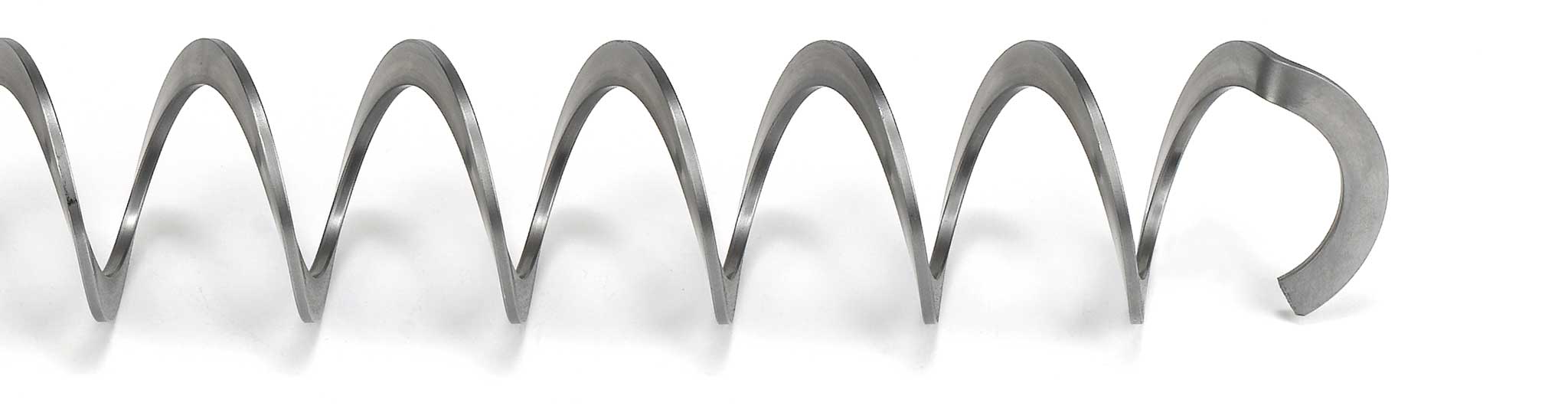

Spring turbulators with hook for heat exchangers - Eurospiral

Features

Materials used

• Standard and hardened steel
• Stainless steel

Dimensions

External Ø from 45 mm to 80 mm.

Versions

Exclusively right-handed (RH)

Lengths

Upon customer specifications.

Packaging

On pallets.

REQUEST A QUOTE

Spring turbulators with clamp

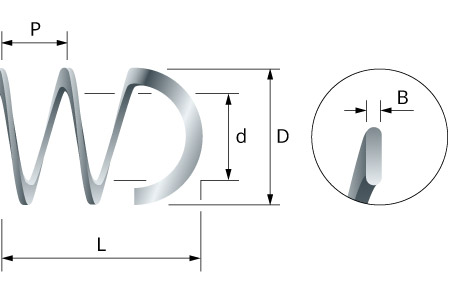

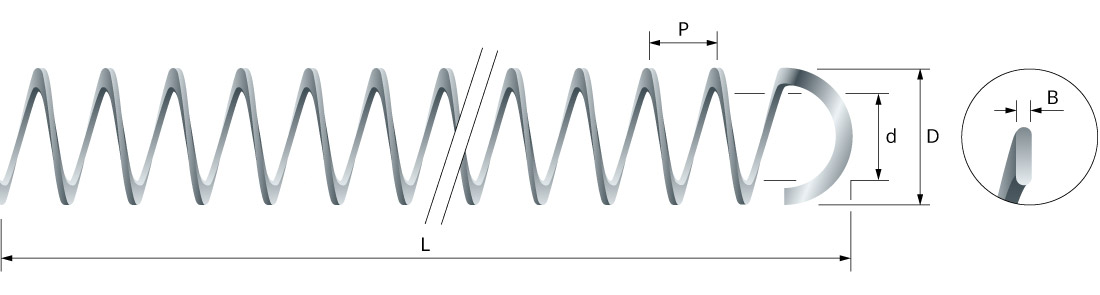

Drawing of spring turbulators with hook for heat exchangers - Eurospiral
Detail of drawing of spring turbulators with hook for heat exchangers - Eurospiral
