Continuous augers for transporting medium-lightweight materials

Continuous augers

The ideal conveyor for transporting medium-lightweight materials

Characterized by the difference in thickness between the outer and inner edges (normally the external thickness is about a half of the internal thickness), the continuous augers are indicated for the transport of medium-light materials.
This type of auger, which is the most widely used in the cereal, milling, oenological, oil and chemical field, is also used as turbulator in heat exchangers.

Over the years, our company has specialized in the production of medium to small continuous augers for pellet transport. The range of augers dedicated to this customer segment includes a wide range of dimensions, lengths and versions (right or left-handed) and can be supplied both in normal steel and stainless steel of different types.
Experience and continuous innovation of the production plants allow us to guarantee the maximum dimensional precision on our continuous augers for transporting medium-lightweight materials, which results in a drastic reduction of the assembly times by the customer.

ASK FOR A QUOTATION

Features

Materials used

• DD11 cold rolled steel
• DD12 steel strips
• Stainless steels of various types (based on stock availability and/or quantities requested)

Dimensions

As show in the exemplifying chart.
Possibility of producing also augers with different dimensions after feasibility check.

Versions

Right-handed (RH) and Left-handed (LH)

Lengths

3 m standard pieces.
Different lengths upon request.

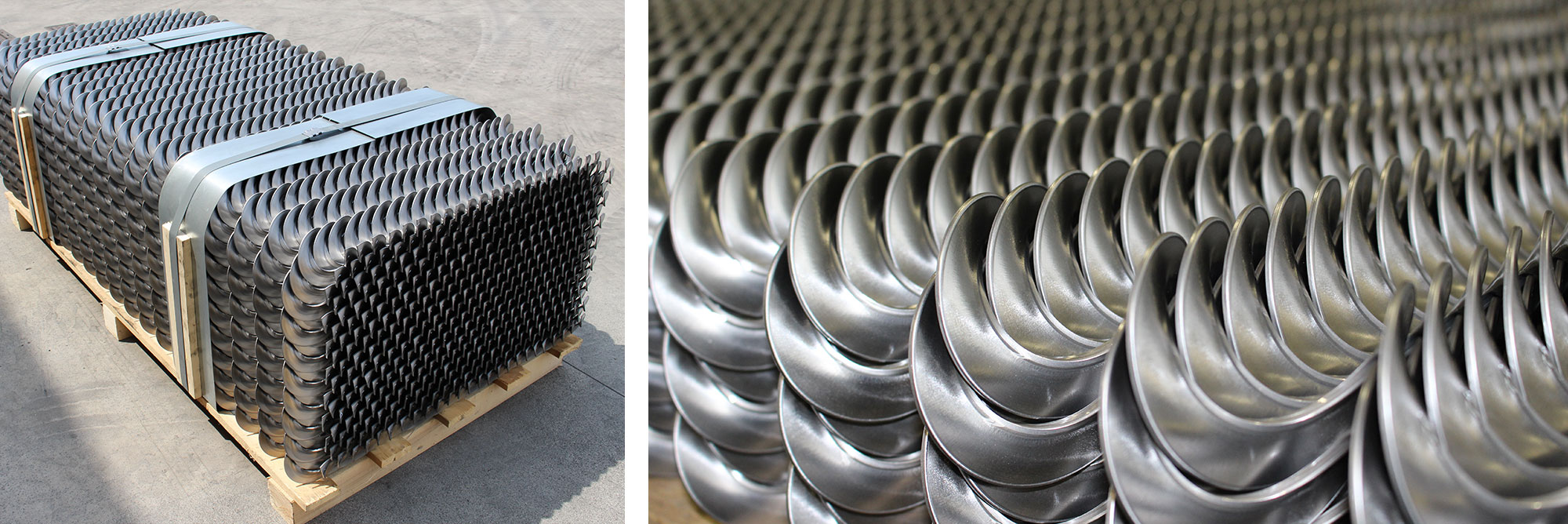

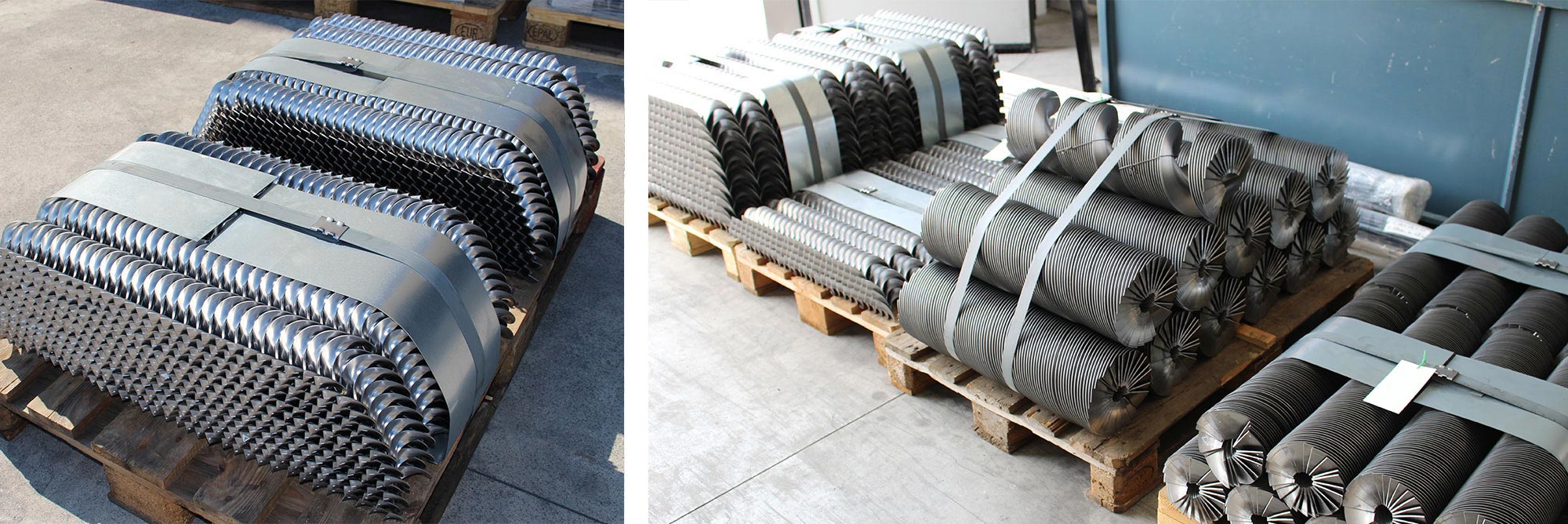

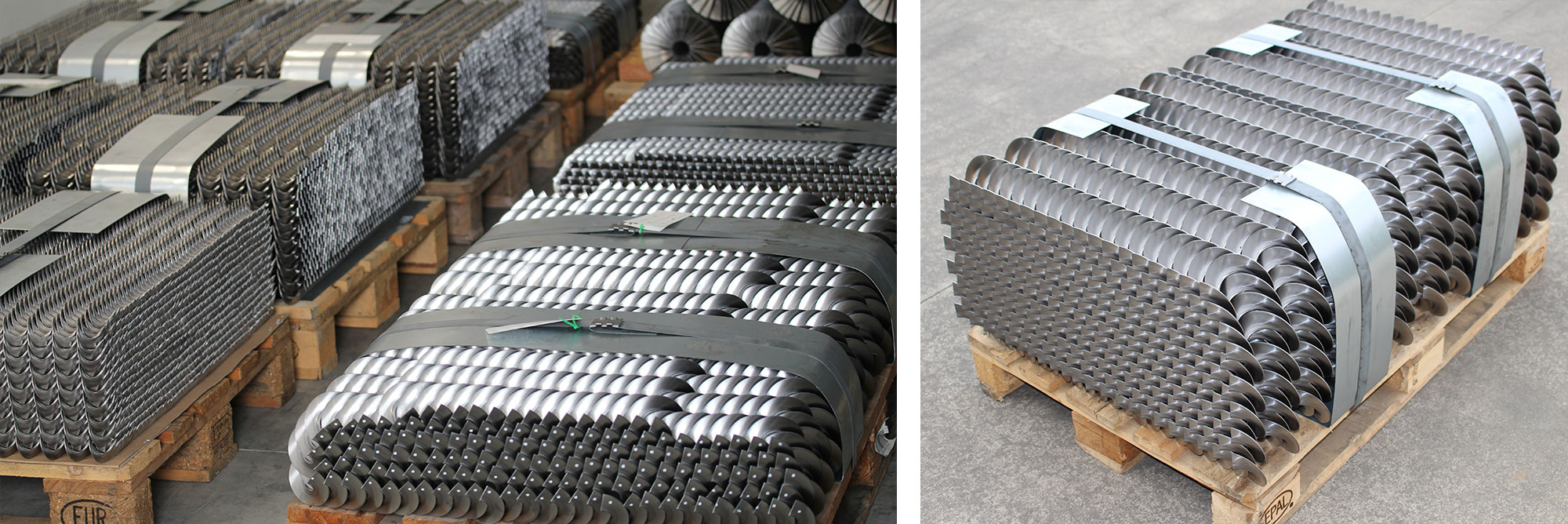

Packaging

In bundles or on pallets depending on the requested item and/or the type of transport.

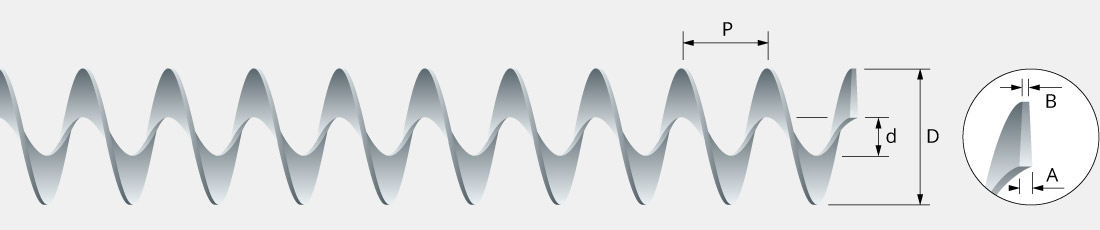

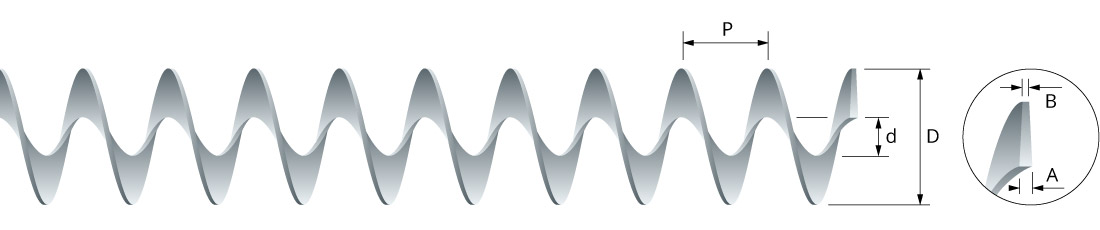

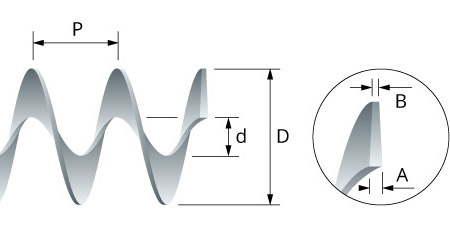

Drawing of continuous augers for transporting medium-lightweight materials - Eurospiral

As show in the exemplifying chart

DD11 and DD12 (standard steel)

D (mm)	P (mm)	d (mm)	A (mm)	B (mm)
41	40	10	3	~1,5
45	45	12	3	~1,5
48	50	18	3	~1,5
50	50	20	3	~1,5
52	45	22	3	~1,5
55	45	22	3	~1,5
56	43	20	3	~1,5
58	45	20	3	~1,5
60	40	20	3	~1,5
60	40	20	4	~2
60	60	20	3	~1,5
60	45	20	3	~1,5
60	60	20	3	~1,5
65	65	25	4	~2
65	65	22	3	~1,5
70	70	22	3	~1,5
70	70	22	3	~1,5
72	50	24	4	~2
75	75	27	3	~1,5
80	80	22	3	~1,5
80	80	27	3	~1,5
90	90	22	3	~1,5
90	90	27	3	~1,5
100	100	22	3	~1,5
100	100	27	3	~1,5
100	100	34	3	~1,5
110	110	22	3	~1,5
110	110	27	3	~1,5
120	120	27	3	~1,5
120	120	34	3	~1,5
130	130	27	3,5	~1,7
130	130	34	3,5	~1,7
140	140	34	3,5	~1,7
140	140	38	3,5	~1,7
140	140	43	3,5	~1,7
140	140	49	3,5	~1,7
150	150	43	3,5	~1,7
150	150	49	3,5	~1,7
160	160	43	3,5	~1,7
160	160	49	3,5	~1,7
180	180	49	4	~2
180	180	60	4	~2
190	190	49	4	~2
200	200	49	4	~2
200	200	61	4	~2
210	210	49	4	~2
210	210	61	4	~2
220	220	49	4	~2
220	220	61	4	~2
230	230	61	4	~2
240	240	61	4	~2
240	240	70	4	~2
250	250	61	4	~2
250	250	70	4	~2
260	260	61	6	~3
260	260	70	6	~3
270	270	71	6	~3
270	270	70	6	~3
270	270	89	6	~3
280	280	70	6	~3
280	280	89	6	~3
290	290	76	6	~3
290	290	89	6	~3
300	300	76	6	~3
300	300	89	6	~3
350	350	90	8	~4

Various types of stainless steel

D (mm)	P (mm)	d (mm)	A (mm)	B (mm)
42	42	15	3	~1,5
52	50	18	4	~2
52	50	20	4	~2
55	70	15	3	~1,5
60	60	20	3	~1,5
60	50	20	3	~2
64	65	22	4	~2
68	70	22	4	~2
71	70	25	4	~2
75	75	35	4	~2
80	80	27	4	~2
90	90	27	4	~2
100	100	27	4	~2
100	100	34	4	~2
110	110	43	4	~2
120	120	34	4	~2
130	130	34	4	~2
130	130	43	4	~2
150	150	49	4	~2
160	160	49	4	~2
180	180	49	4	~2
200	200	61	4	~2
